SV2003 Multi-Function Integrated Scanning Sonar

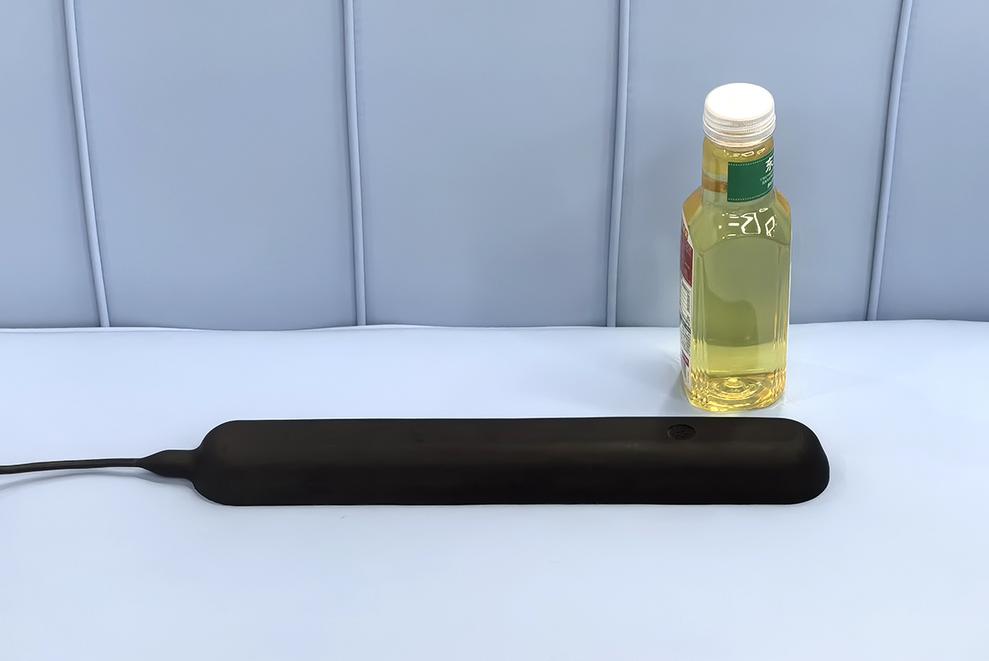

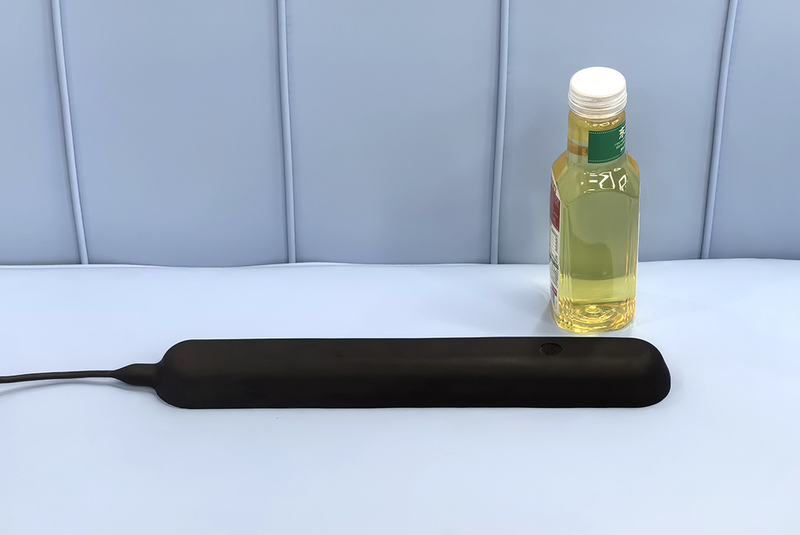

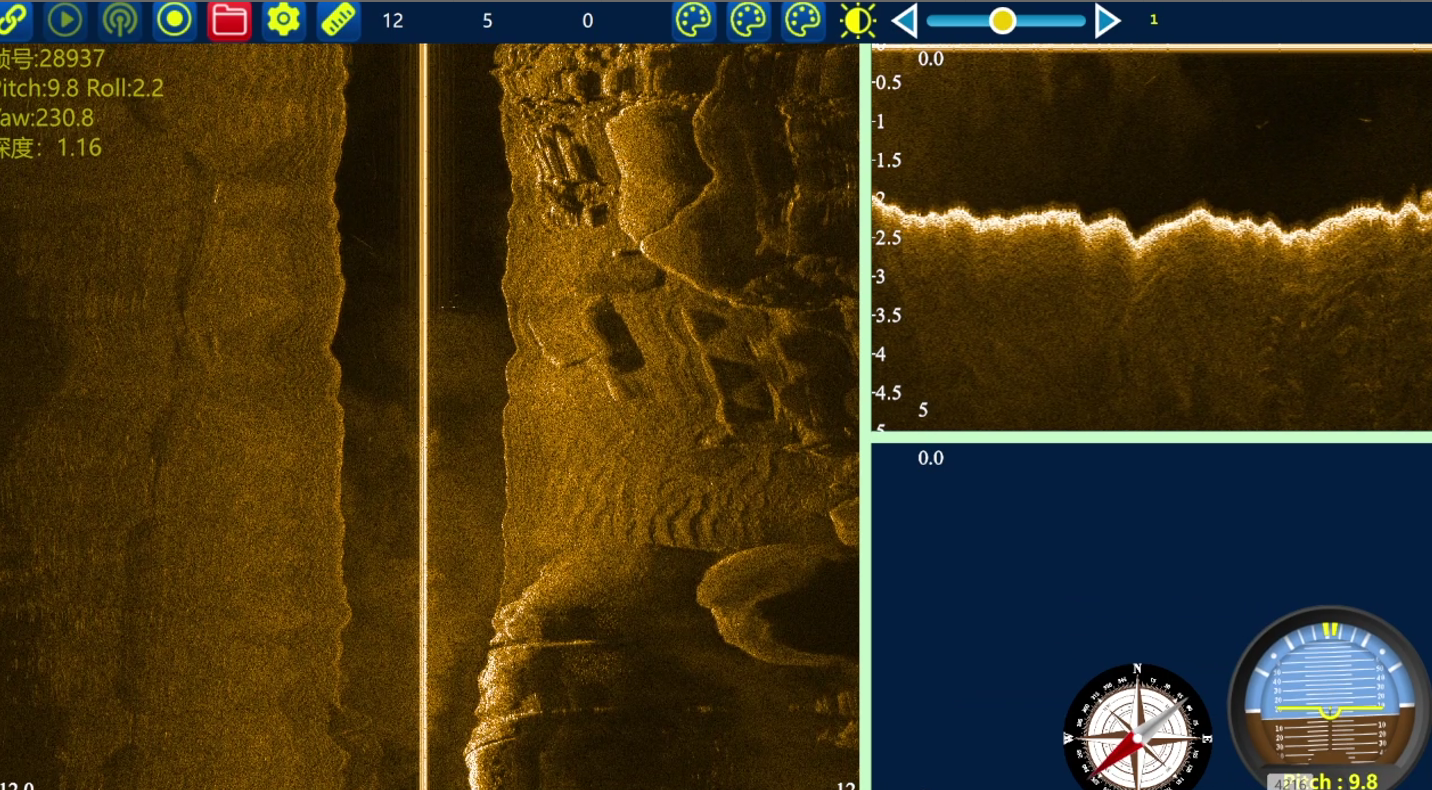

The SV2003 is a multi-function integrated scanning sonar designed specifically for UUVs, ROVs, USVs, and small surface vessels. It features an integrated design that combines side-scan, down-scan, depth sounder, and attitude sensor into a single streamlined underwater unit, connecting to a host computer via Ethernet for real-time scanning results. The altimeter/fish-finder function is software-switchable, while all other functions can be used and output simultaneously.

Unlike similar embedded side-scan sonars on the market, this sonar integrates all electronic systems directly into the underwater unit, requiring only an Ethernet connection and power supply. This eliminates the need to reserve precious space for a separate electronics pod or system, making integration onto a vehicle extremely convenient.

The side-scan and down-scan functions operate at either 450 kHz or 900 kHz, selectable at the time of ordering. The maximum operating depth is 300 meters by default, with 1500m and 3000m models available to order.

Note: All functions except side-scan are optional.

Technical Specifications

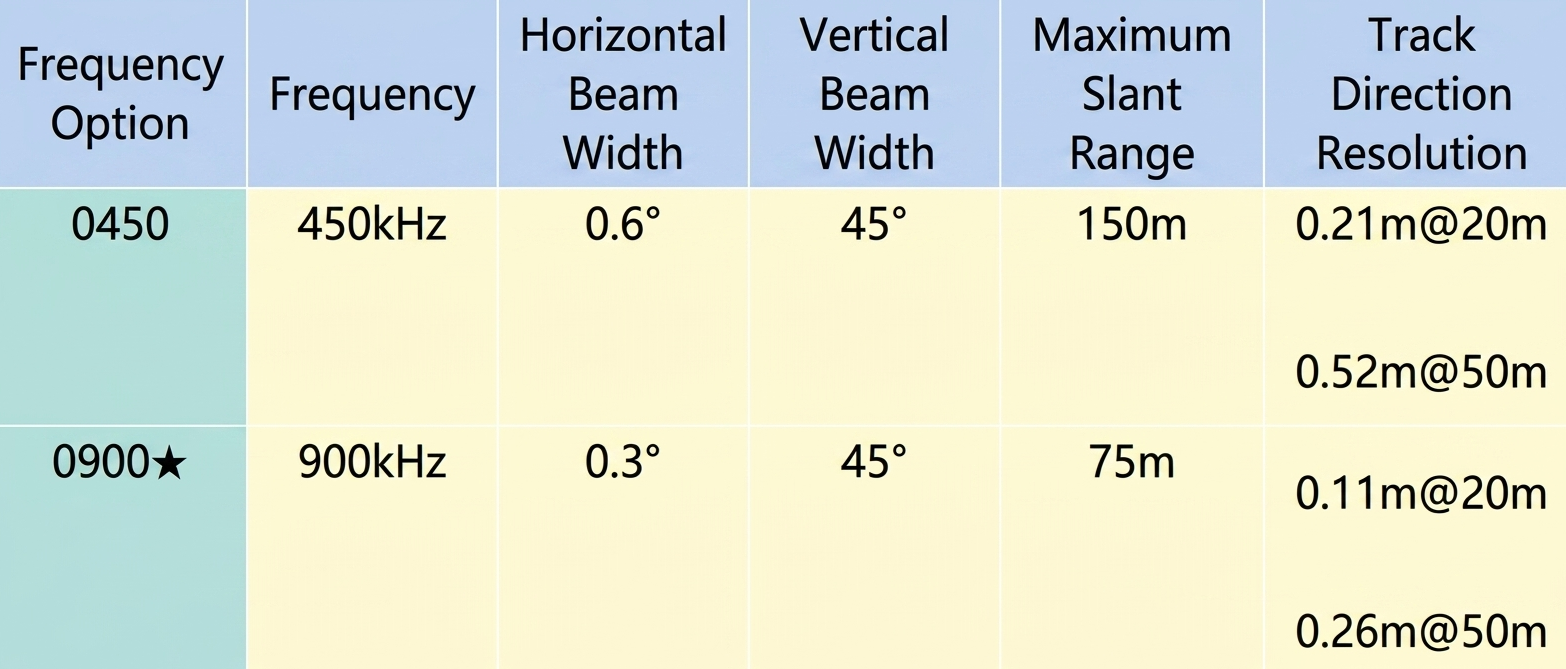

1. Side-Scan and Down-Scan Specifications:

★: Preferred model, typically available from stock.

Range resolution: 10mm;

Transmit signal: CW or CHIRP, selectable automatically or manually

2. Depth Sounder Specifications:

Outputs current water pressure;

Measurement range: 0–3MPa, 0–20MPa, or 0–50MPa (varies according to depth option);

Accuracy: 5% + 10kPa (after calibration);

3. Other Specifications:

Maximum operating depth: 300m, 1.5km, or 3km; please specify when ordering;

Input voltage: 18 – 30VDC;

Power consumption: static approx. 1W, average during operation approx. 5W, peak less than 20W;

Communication interface: 1 × 10M Ethernet.

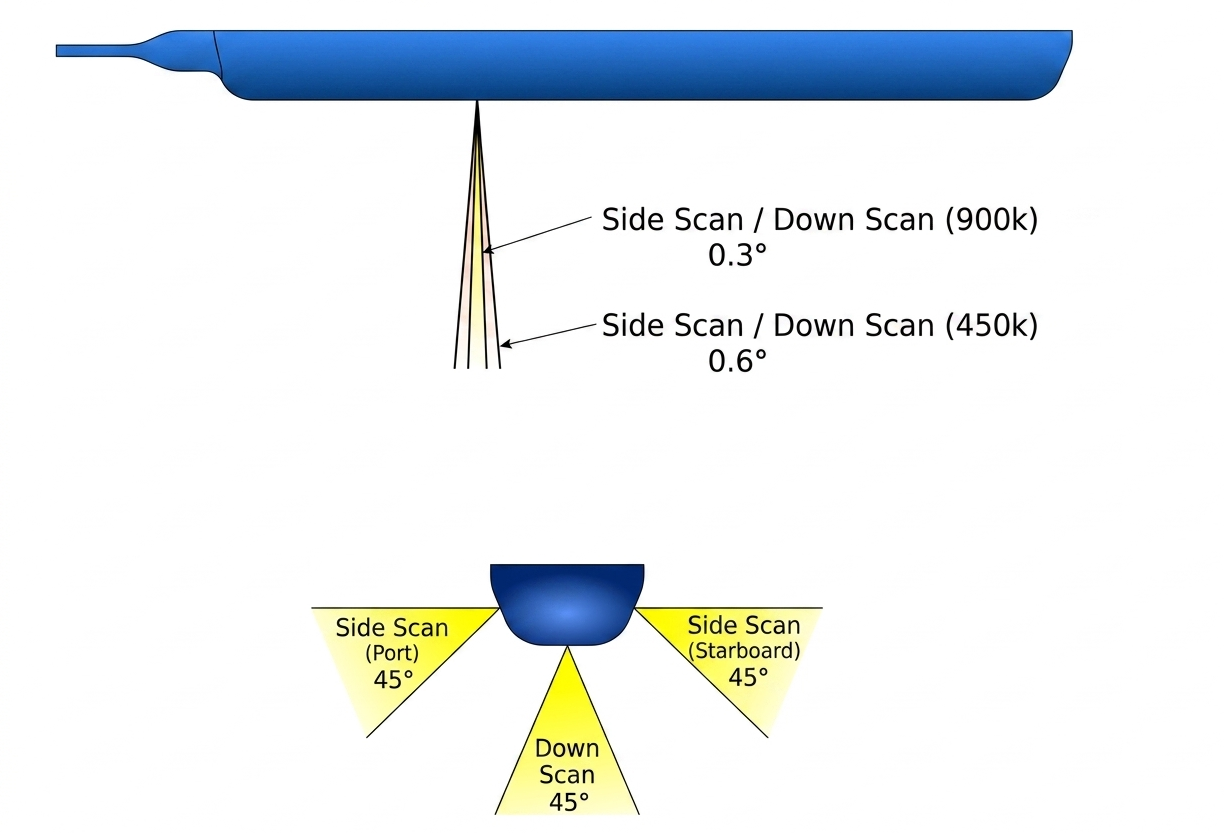

4. Detection Beam Pattern Illustration:

Mechanical Parameters

Dimensions (L x W x H, excluding connectors and cable):

300m and 1.5km models: 377(±3) x 57(±1) x 31(±1) mm;

Weight (in air/water, excluding cable):

300m model: approx. 800g/200g;

1.5km model: 1.2kg/600g;

Housing material: polyurethane, 316 stainless steel;

Surface treatment: none;

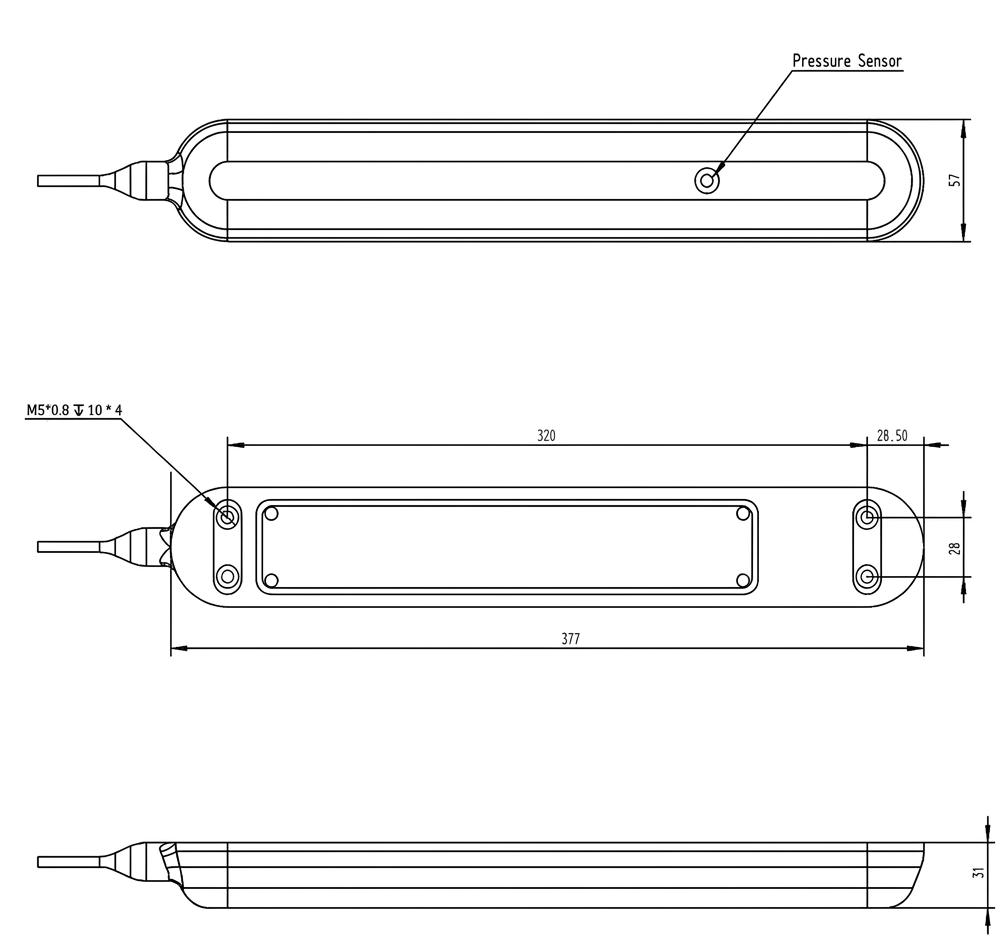

Three-view drawing and mounting holes:

The exposed materials of this product are polyurethane and 316 stainless steel, making it resistant to rust in seawater. However, due to the water permeability of polyurethane, seawater can slowly penetrate the sonar's sealant and cause irreversible damage. Therefore, continuous immersion in fresh water must not exceed 2 weeks, and continuous immersion in seawater must not exceed 1 week;

If a product capable of long-term underwater operation is required, please be sure to specify when ordering. Our company will adopt special materials and processes accordingly.
