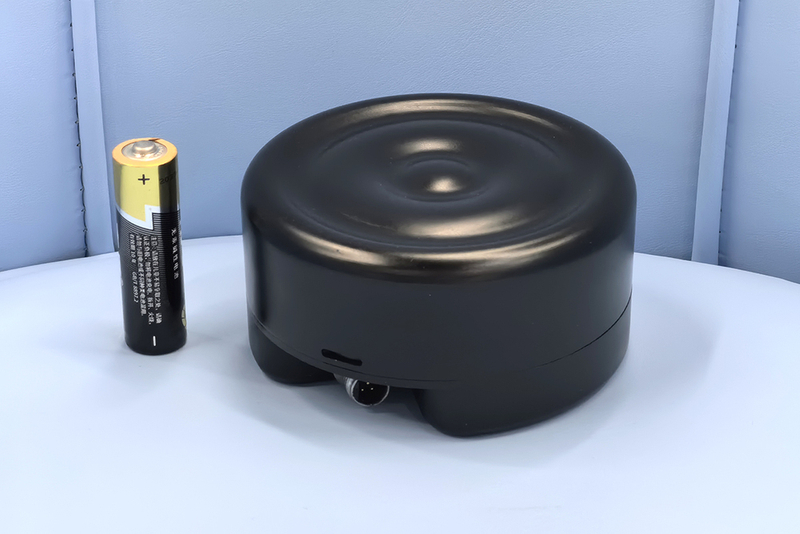

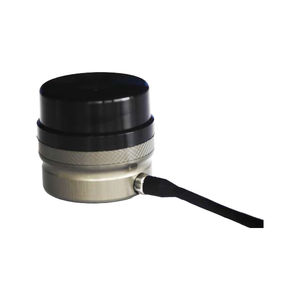

SV1006 Triple-Frequency 2D Scanning Sonar is a mechanically scanned 2D imaging sonar utilizing either a single beam or dual beams. It provides omnidirectional acoustic vision around the vehicle in both clear and turbid water, enabling functions such as target detection/identification, collision avoidance, and obstacle detection. Its key features include low cost, compact size, lightweight design, and low power consumption.
Featuring an oil-filled sealed structure with no external rotating components, it eliminates risks of sediment-clogged bearings and entanglement with seaweed/fishing lines.
The SV1006 series offers three models:
SV1006A: Single-beam scanning sonar achieving full coverage via beam rotation.
SV1006B: Dual-beam scanning sonar with two 180°-opposed beams, doubling the scanning efficiency for 360° coverage compared to the SV1006A.
SV1006C: Pipeline-specific high-frequency scanning sonar optimized for close-range, narrow-beam pipeline profiling applications.
Frequency Specifications:
SV1006A & SV1006B: Selectable at order – 700 kHz or 1.2 MHz
SV1006C: Pipeline-specific – Fixed 1.8 MHz
Standard models support max operating depths: 300 m and 1.5 km
| Availability: | |
|---|---|
| Quantity: | |

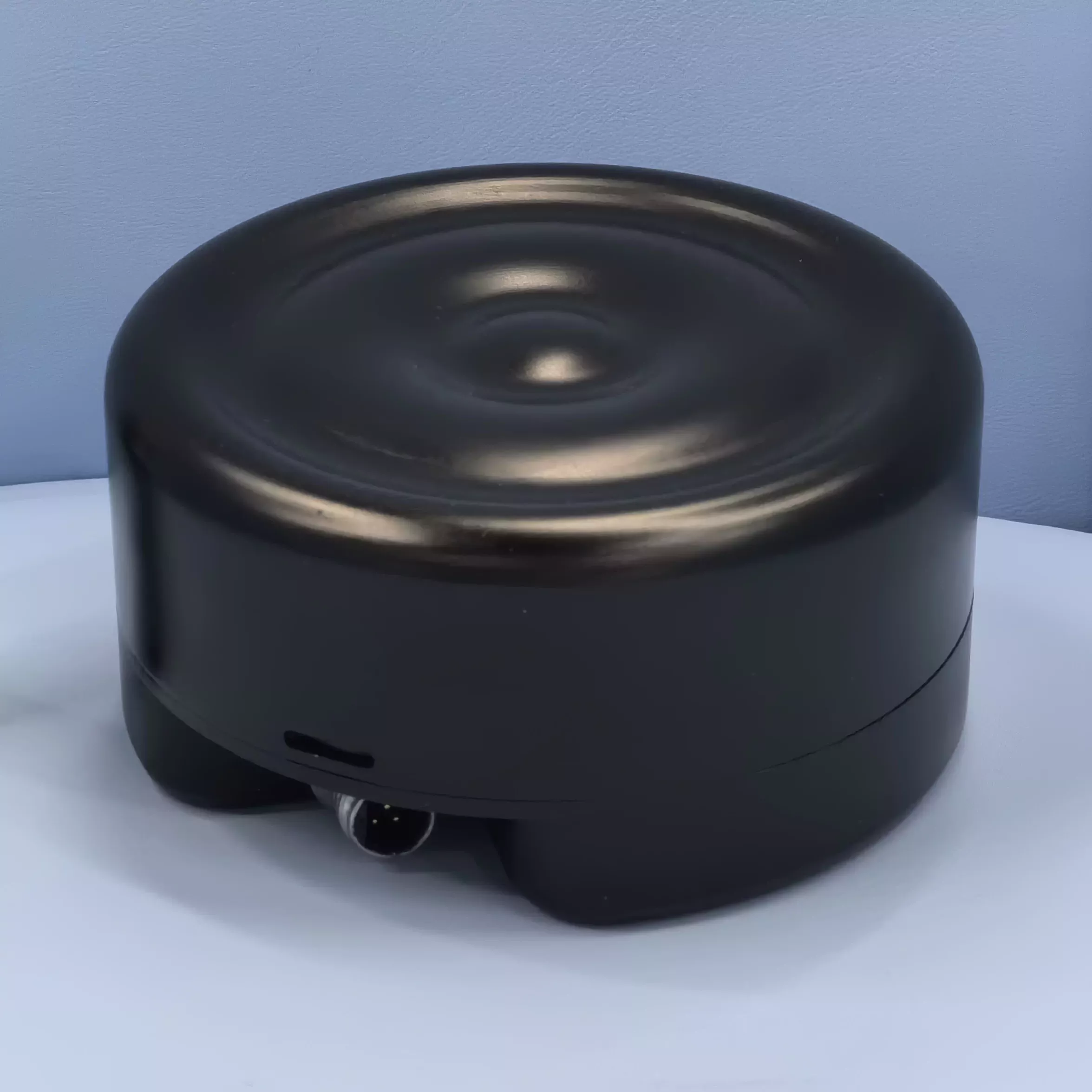

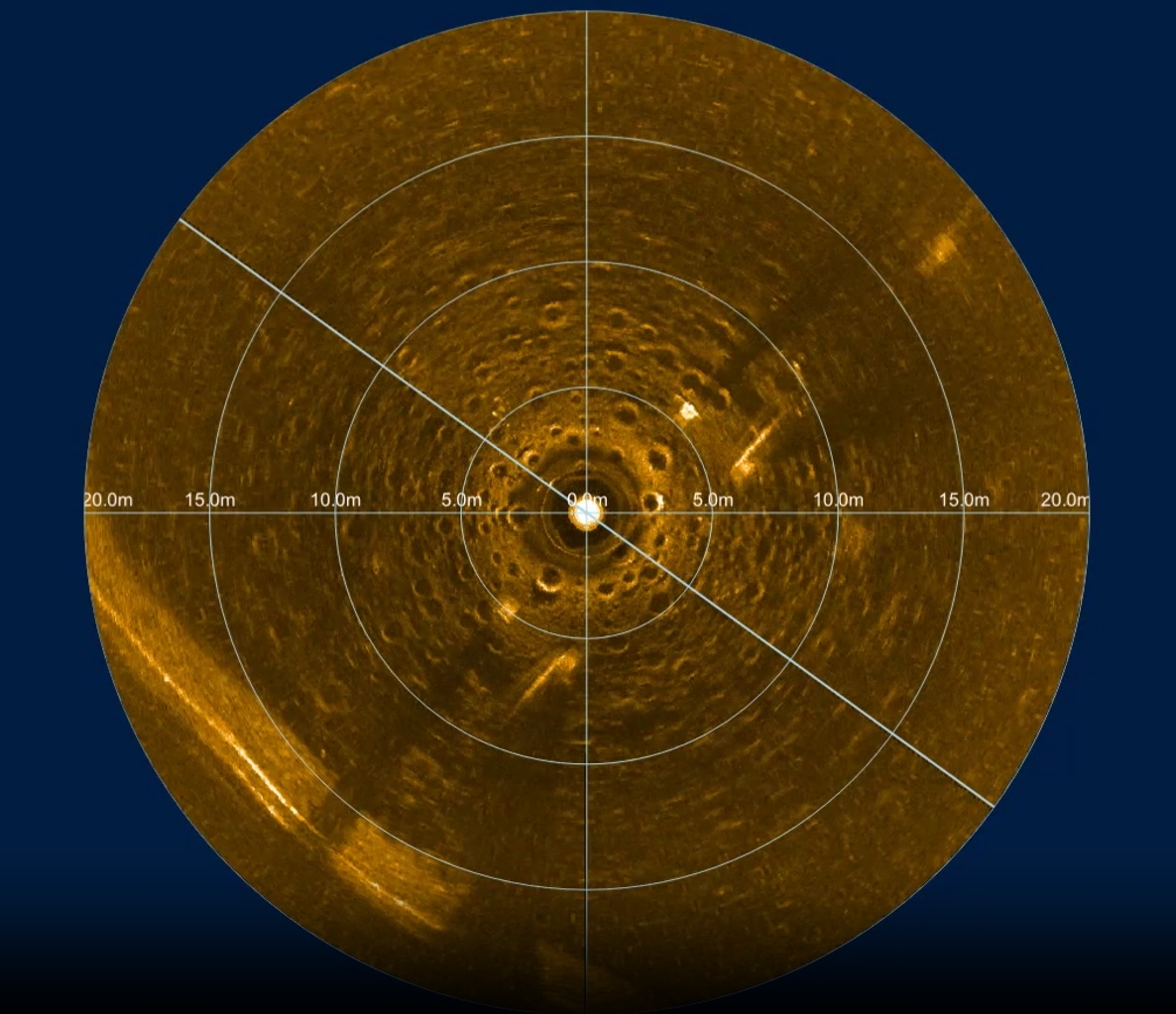

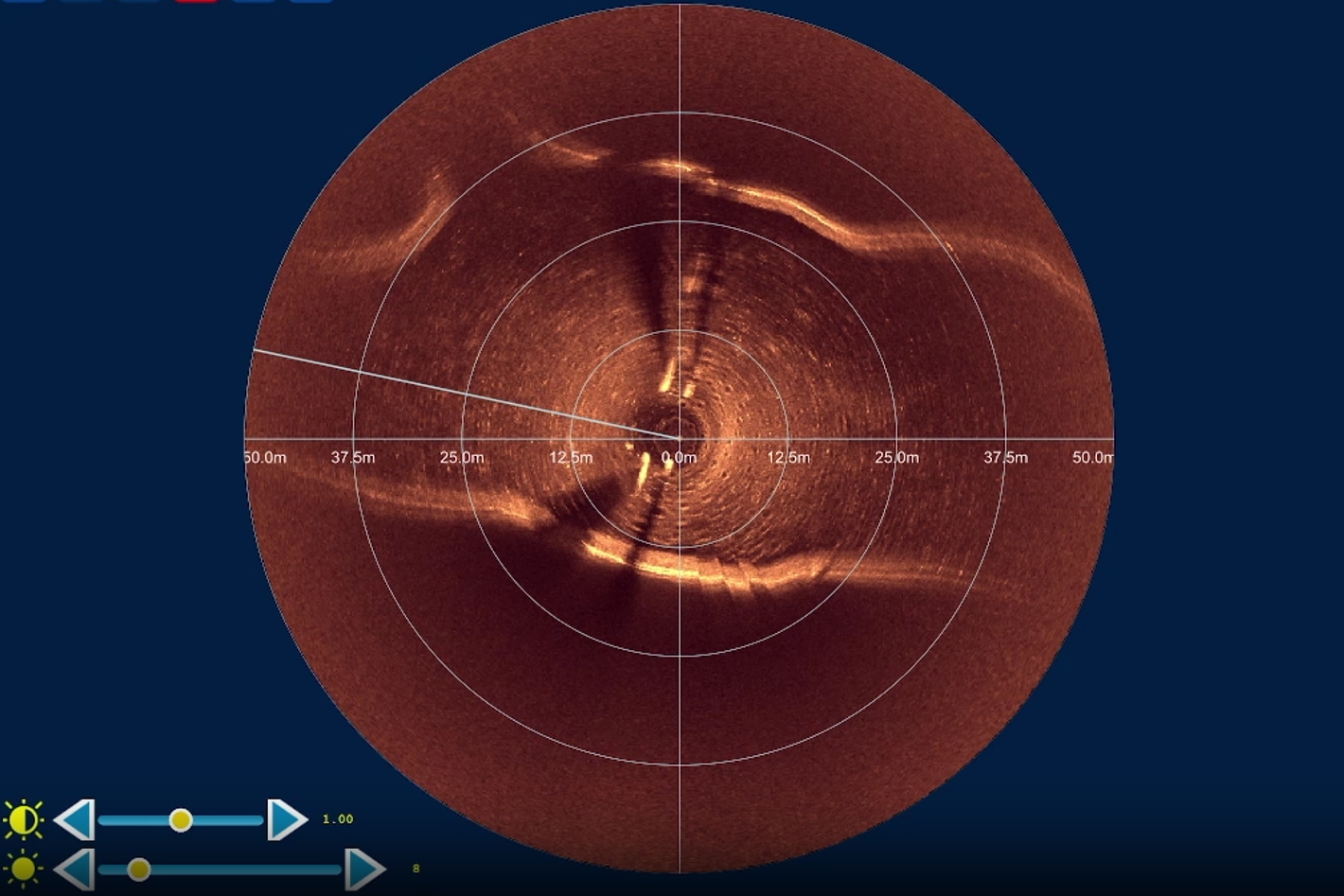

SV1006 Triple-Frequency 2D Scanning Sonar is a mechanically scanned 2D imaging sonar utilizing either a single beam or dual beams. It provides omnidirectional acoustic vision around the vehicle in both clear and turbid water, enabling functions such as target detection/identification, collision avoidance, and obstacle detection. Its key features include low cost, compact size, lightweight design, and low power consumption.
Featuring an oil-filled sealed structure with no external rotating components, it eliminates risks of sediment-clogged bearings and entanglement with seaweed/fishing lines.
The SV1006 series offers three models:
SV1006A: Single-beam scanning sonar achieving full coverage via beam rotation.
SV1006B: Dual-beam scanning sonar with two 180°-opposed beams, doubling the scanning efficiency for 360° coverage compared to the SV1006A.
SV1006C: Pipeline-specific high-frequency scanning sonar optimized for close-range, narrow-beam pipeline profiling applications.
Frequency Specifications:
SV1006A & SV1006B: Selectable at order – 700 kHz or 1.2 MHz
SV1006C: Pipeline-specific – Fixed 1.8 MHz
Standard models support max operating depths: 300 m and 1.5 km
| Frequency Selection | Frequency | Center Beamwidth | Horizontal FOV | Elevation Angle | Maximum Detection Range |
| 700 | 700kHz | 1.5° | 360° | 30° | 70m |
| ★1200 | 1.2MHz | 0.82° | 360° | 20° | 50m |
| 1800 | 1.8MHz | 0.6° | 360° | 2° | 10m |
● **Range Resolution**: 2 mm
● **Range**:
- SV1006A/B: 1~100 m
- SV1006C: 1~15 m
● **Scan Rate**:
- SV1006A/B: Max 20 lines/s, 0.1°/s ~ 30°/s
- SV1006C: Max 100 lines/s (20 lines/s max via serial port), 0.1°/s ~ 360°/s
● **Scan Mode**: Panoramic scan or sector scan
● **Transmit Signal**:
- SV1006A/B: CW or CHIRP (auto/manual selection)
- SV1006C: Fixed CW
● **Max Operating Depth**: 300 m or 1.5 km (specify at order)
● **Input Voltage**: 12 ~ 36 VDC
● **Power Consumption**:
- Avg. power: ≈3 W
- Peak power: <20 W
● **Communication Interfaces** (select at order):
- 1× Half-duplex isolated RS-485 (460,800 bps)
- Full-duplex isolated RS-232 (115,200 bps)
- 100M Ethernet
*(Serial interfaces limit max scan rate)*
