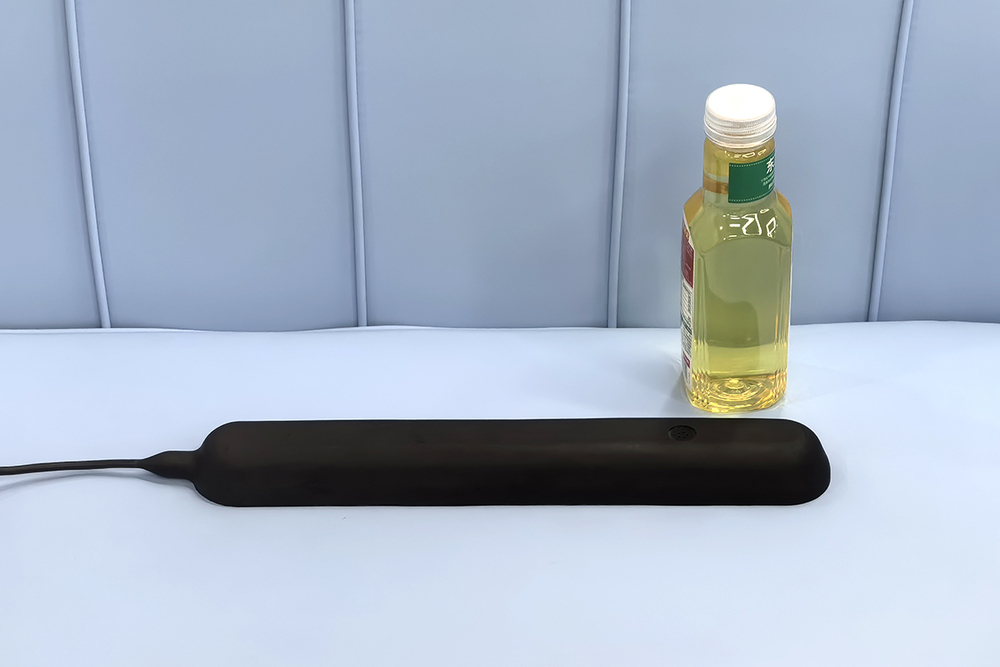

SV2003 Integrated Side Scan Sonar

Product Highlights

1.Integrated design, no deck-unit or decoder are needed;

2.Multi-function: side-scan, down-scan, depth gauge, and AHRS sensor(optional);

3.Small form-factor and light-weight: 377x57x31 mm, 900g in air/300gin water(300m by default);

4.High acoustic resolution: 0.6°/0.3° (450kHz/900kHz);

5.Easy to use: APP and free SDK are provided.

What include in package:

1.Sonar device;

2.Cable (5m in standard; header included);

3.24V power adaptor;

4.U-disk with software, manual and SDK;

5.Factory test performance proof.

Technical specifications

Side-scan and down-scan

1.Center frequency: 450kHz or 900kHz, ordered by request. Otherfrequencies are customizable;

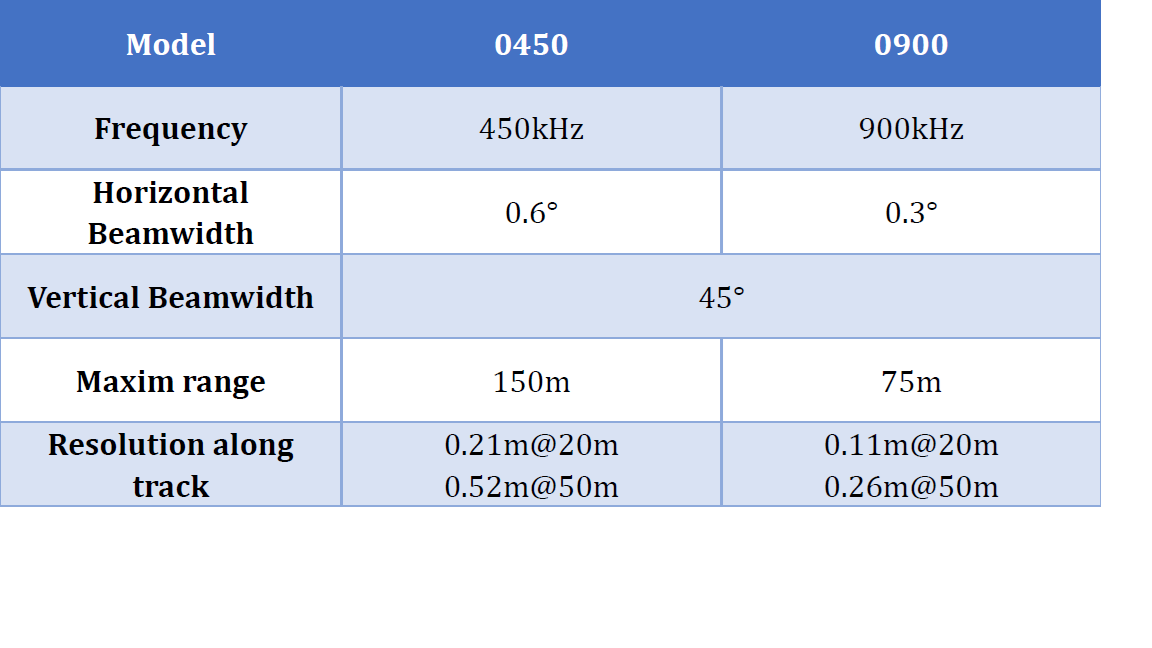

2.Range, beam width and resolution:

Resolution across track: 10mm;

Depth gauge (optional)

1.Range: 0~3MPa or 0~20MPa;

2.Accuracy: 5%+10kPa;

Electrical specification and interface

1.Supply voltage: 18 ~ 24VDC；

2.Power consumption: about 5W in average, 20W in peak (rangedependent);

3.Communication interface: 100Base-T ethernet (4-wire);

4.Connector: one waterproof connector;

Mechanical specification

1.Dimension (W x H x D, without cable and connector):377(±1) x 57(±1) x 31(±1)；

2.Weight (Air/Water, without cable):300m: about 900g/300g；1.5km: about 1.5kg/900g；

3.Material: Anodized aluminum alloy (300m); titanium(1.5km);

4.Streamlined design for minimum flow resistance;

Operation and display

Sonar can be controlled by follow methods:

1.Our APP SaphireViewer, used for all our forward-looking sonarproducts. Windows, Linux and Mac OS are supported.

2.We also provide SDK for free. Please contact factory or sales for request
