The SV1310A is a newly designed, compact, 6000-meter depth-rated forward-looking sonar that provides acoustic vision ahead of the vehicle in both clear and turbid water, enabling target detection and identification, collision avoidance, and obstacle detection.

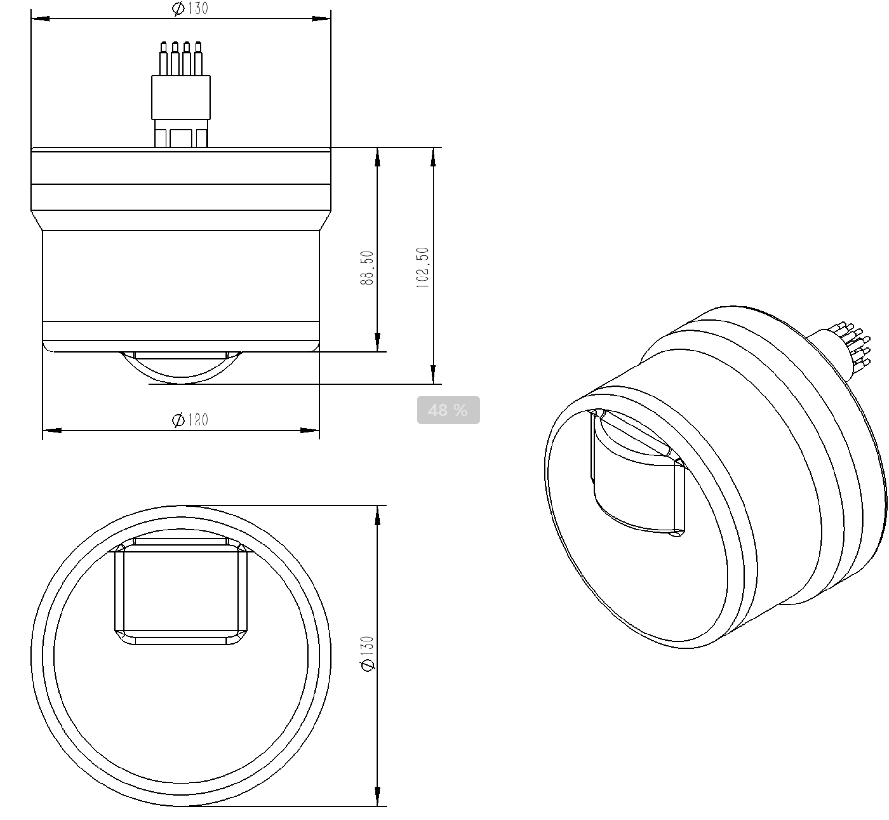

Compared with similar products at home and abroad, this sonar offers significant advantages in both size and weight. It weighs only 3.5 kg in air and measures just 130 mm (diameter) × 103 mm (length). While typical deep-sea imaging sonars often weigh over ten kilograms, the SV1310A is extremely friendly for small deep-sea unmanned platforms. More importantly, the SV1310A employs special materials, processes, and coating technologies that have essentially solved the problems of degraded insulation, swelling, and cracking caused by water absorption in the acoustic window material under high pressure, allowing the sonar to operate long-term at depths of up to 72 MPa.
The SV1310A is available in single-frequency or dual-frequency configurations. Like most of our company's products, it offers multiple frequency options, including 375 kHz, 400 kHz, 750 kHz, and 1.2 MHz. The vertical beam angle is adjustable in single-frequency configuration. A dedicated collision avoidance version is also available; please specify when ordering. |
