Technical Specifications |
Frequency: 1.8MHz/3MHz |
Center beam width: 0.6°/0.35° |
Horizontal field of view: 80°/50° |
Vertical beam angle: 20°/15° |
Maximum detection range: 30m/9m |
Range resolution: 2.5mm |
Refresh rate (range-dependent): up to 30Hz (depending on range and operating mode) |
Number of beams: 512 |
Transmit signal: CW or CHIRP, selectable automatically or manually |
Maximum operating depth: 300m; greater depths customizable |
Maximum operating speed: 6kn; exceeding this speed does not affect usability but may reduce detection range |
Input voltage: 18 – 50VDC |
Power consumption: average approx. 10W, peak less than 30W |
Communication interface: 1 × 100M Ethernet |
Mechanical Parameters |
Dimensions: 120(±1) × 34(±1) × 111(±3)mm |
Weight (in air/water, excluding cable): approx. 700g/250g |
Housing material: aluminum alloy; titanium alloy customizable |
Surface treatment: anodized |

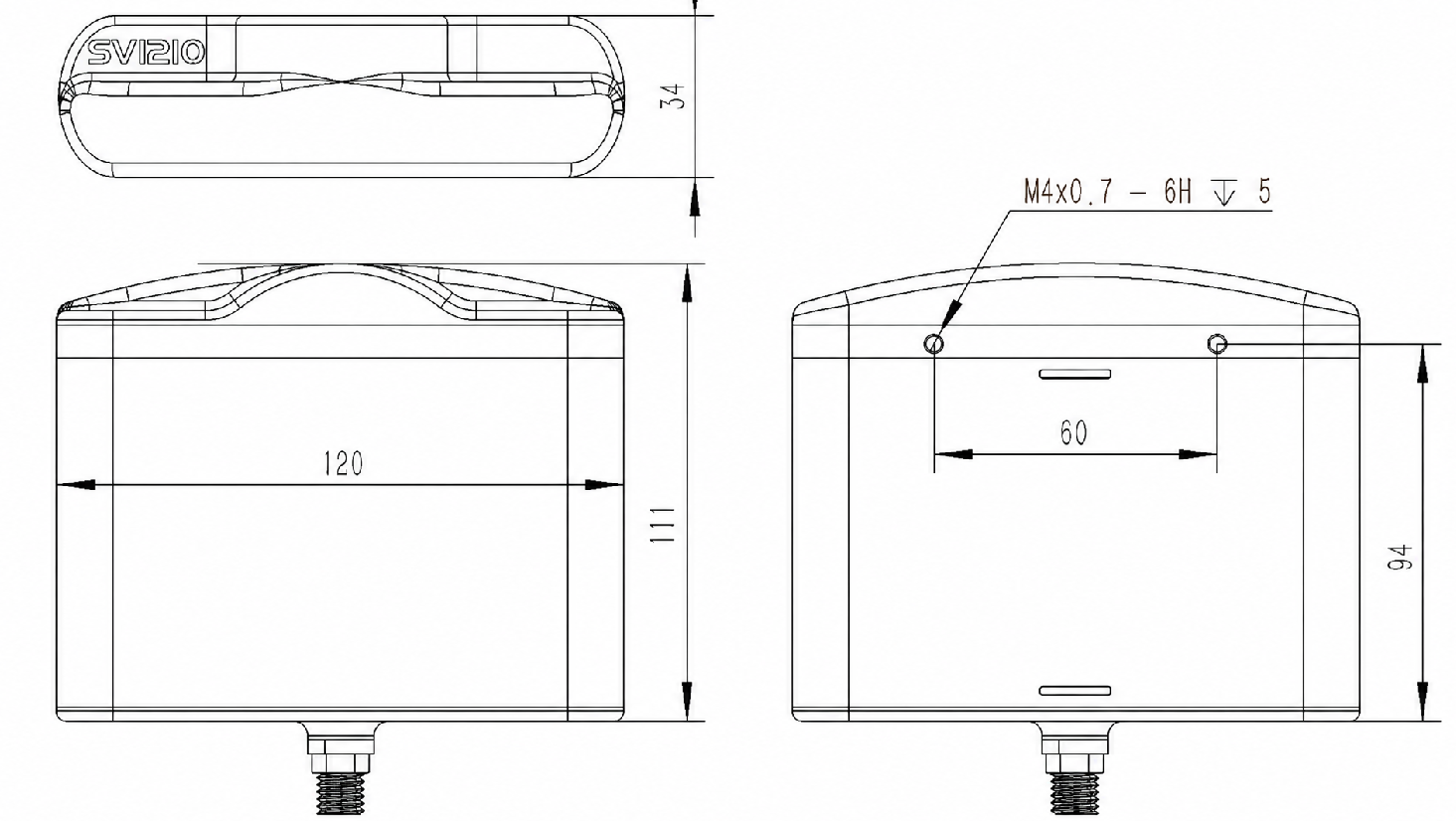

Three-view drawing and mounting holes: (please refer to the drawing) |
