| Product Specifications | |||||||
| Product Model | ZF-IPC-13J11 | ||||||
| Rated Depth | 100 meters/other depths can be customized | ||||||
| Shell Material | Optional: aluminum alloy hard anodized / 316L stainless steel | ||||||
| Resolution | 2 channels 1920*1080, 2 channels resolution 3840*1080 after splicing | ||||||
| Minimum Illumination | 0.005Lux(color mode);0.001Lux(black and white mode) | ||||||
| Lens | 3.3mm fixed focus | ||||||
| Image Enhancement | Automatic fog penetration + green light suppression | ||||||
| perspective | Horizontal 84°, vertical 62° | ||||||
| Binocular Spacing | 60mm | ||||||
| Supporting Protocol | TCP/IP、UDP、RTP、RTSP、 RTCP、RTMP、HTTP、 DNS、DDNS、DHCP、NTP、PPPOE、SMTP、UPNP | ||||||
| Interface Protocol | ONVIF | ||||||
| External Interface | Standard network interface | ||||||
| Power | DC12-24V | ||||||
| Operating Temperature | -20~60℃ | ||||||
| Power Consumption | Camera: ≤3W; fill light: 15W/set | ||||||

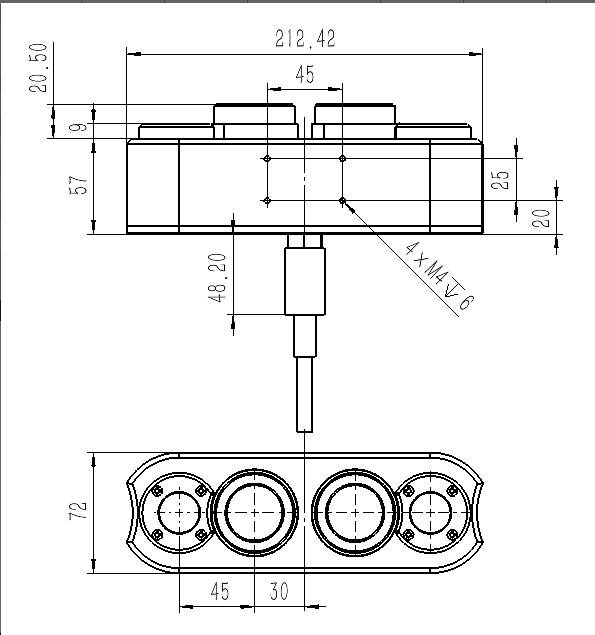

| Size | See dimension drawing | ||||||
| Other | Provide SDK secondary development kit | ||||||
| Connector | Industrial grade micro-miniature watertight connector with a cable length of 0.6 meters | ||||||
| Weight | Stainless steel: air 4.75kg, water 3.85kg Aluminum alloy: air 1.7kg, water 0.8kg | ||||||
