Operating Frequency: 900 kHz
Detection Range: Up to 80 m
Minimum Detection Range (Near Field Blind Zone): 0.1 m
Maximum Number of Beams: 256
Range Resolution: 7.5 mm
Angular Resolution: 1°
Horizontal Beamwidth (Field of View): 60°
Vertical Beamwidth: 20°
Physical Dimensions: 113 × 44 × 128 mm (W × H × D, excluding pressure connector)
Weight: 0.87 kg (in air) / 0.31 kg (in water)
Maximum Operating Depth: 300 m
Operating Temperature Range: -5°C to +35°C
Storage Temperature Range: -20°C to +50°C
Refresh Rate: Up to 40 Hz
Power Supply Range: DC 12V to 48V, power consumption ≥ 48 W
Typical Power Consumption: 12 W (at 20 m range setting)
Integrated Sensors:
Temperature Sensor
Humidity Sensor
Electronic Compass
Attitude Sensor (IMU)
Application Area

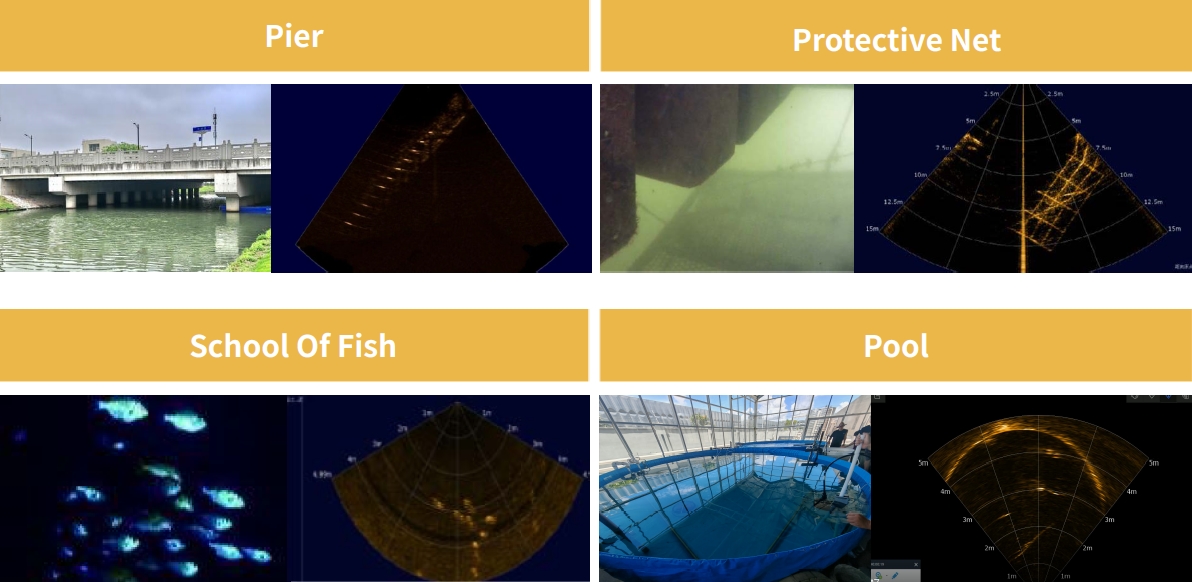

Imaging Result
