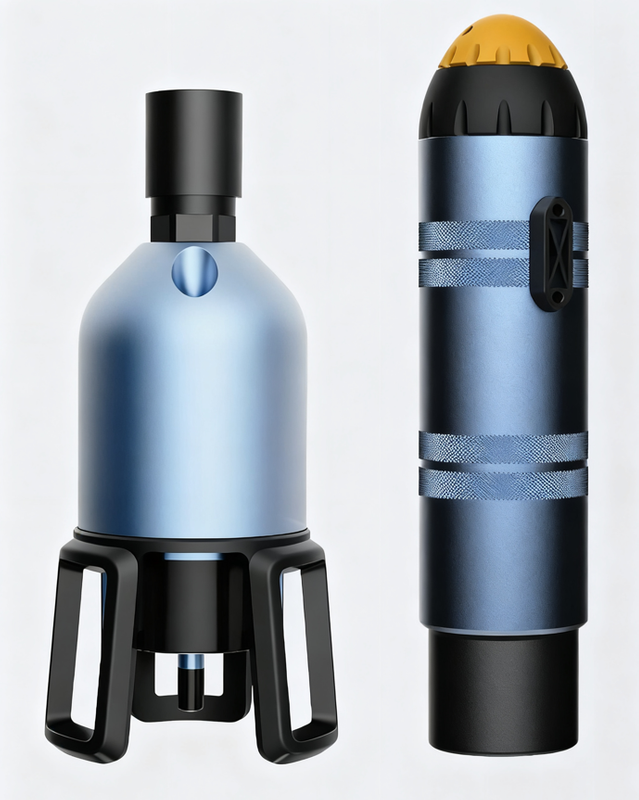

UBD1000 USBL

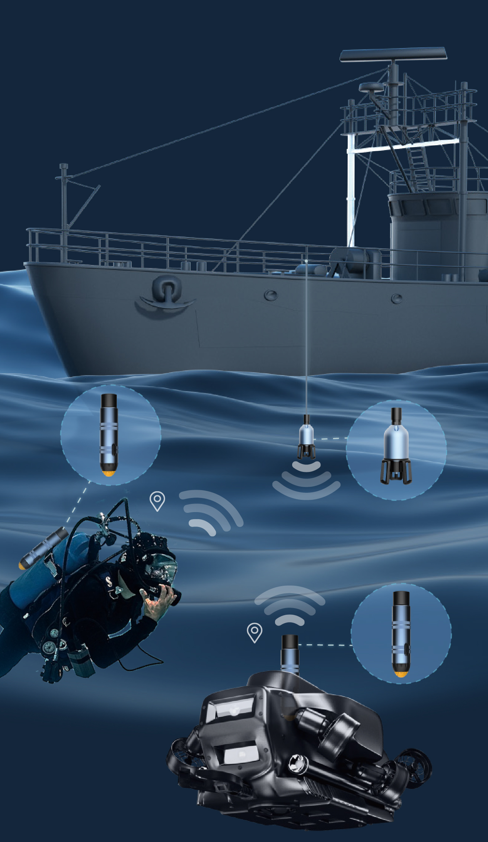

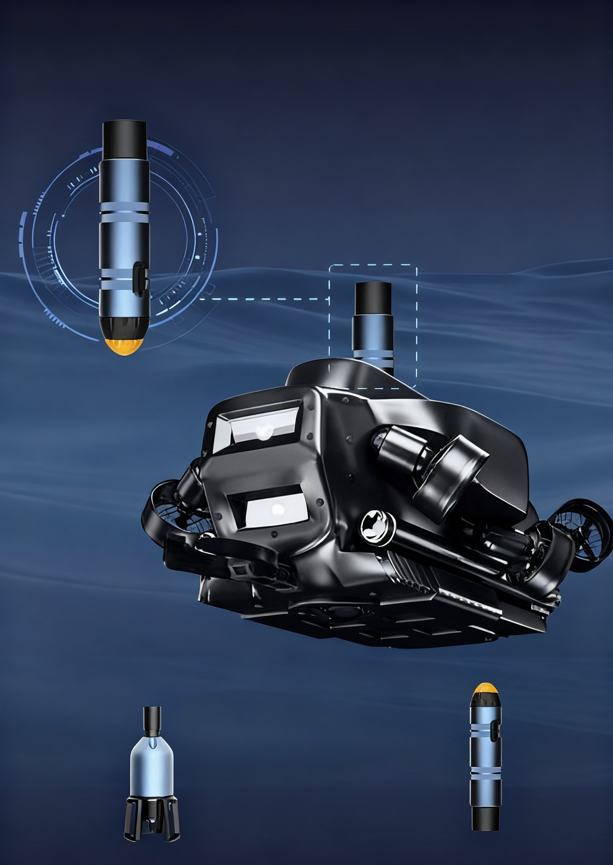

The UBD-1000 Ultra Short Baseline Underwater Beidou Positioning and Communication System is specifically designed for tethered underwater robots (ROVs) and untethered autonomous underwater vehicles (AUVs). It enables high-precision positioning of underwater targets and stable wireless two-way communication between surface and

underwater.

Utilizing state-of-the-art broadband spread spectrum technology and target tracking algorithms, this product can perform real-time positioning, tracking, and communication for multiple underwater targets simultaneously, building a multi-node underwater stereoscopic positioning and communication network for users. The multipath effect suppression algorithm, developed for(adverse water conditions) in shallow water, significantly overcomes positioning drift of

underwater targets and improves positioning efficiency. The anti-Doppler effect compensation algorithm allows stable positioning and communication for surface/underwater platforms (e.g., AUVs) during high-speed dynamic navigation. It also features small size, light weight, and high integration, making it particularly suitable for installation on underwater vehicles with limited space, as well as for diver-held navigation sonar platforms.

Application Areas

l ROV/AUV/Diver Positioning

l Wireless Remote Control for ROV/AUV

l Digital Short Message Transmission

l Submarine Cable Laying Positioning

Technical Features

• Multi-purpose Integrated Design: Simultaneously achieves high-precision

positioning and stable underwater acoustic digital communication

• Extremely High Effective Positioning Rate, ensuring non-drifting positioning

points and stable communication

• Multi-target Underwater Tracking: Tracks 4 targets via polling method

• Positioning and Tracking of High-Speed Dynamic Underwater Targets: Up to 10 knots

(with anti-Doppler effect algorithm)

• Broadband Spread Spectrum and Multi-target Positioning Technology

• Multipath Effect Suppression Algorithm for adverse shallow water conditions

• User-friendly Sea Ranger Professional Display and Control Software and support for

third-party SDK communication protocols

Technical Specifications

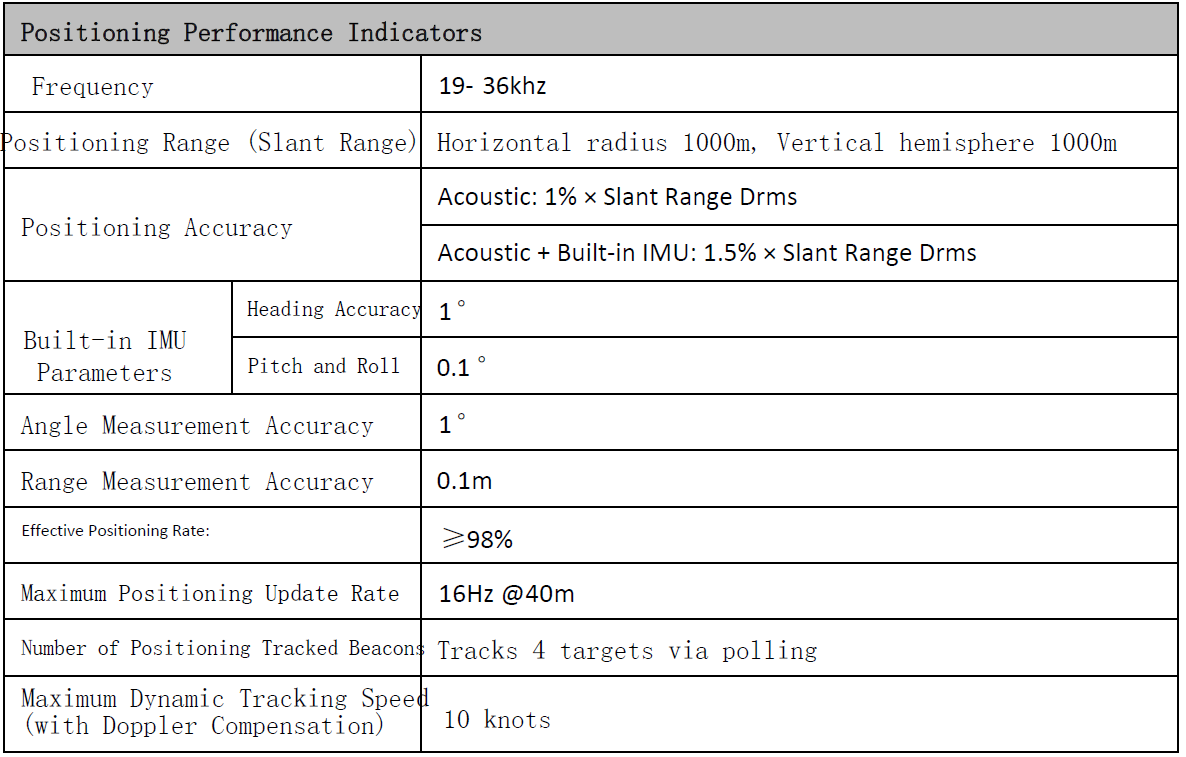

Acoustic Performance Indicators

Note 1: Effective Positioning Rate refers to the ratio of [number of valid positioning points] to [total

number of positioning points] after removing abnormal positioning points within a unit time.
